Bobbin & Base

Part No.

Pin Size

Grooves

No.	Part No.	Type	Core Type	Meterial	Grooves	Pins	Pin Size	Pin Row Distance	Pin Pitch	origin	ver
501	P-2554-1 (DG)	TH Bobbin	EEL-25	T375HF BK	1	5x5	5.0	12.6	5.0	DG	0
502	P-2557 (SZ)	TH Bobbin	EF-2511	PA66 FR50 / PET FR530	1	4x4	0.64x0.64	17.5	5.0	SZ	6
503	P-2559 (DG)	TH Bobbin	EFD-25	PM9820	2	4x2	0.6x0.6	22.5	5.0	DG	0
504	P-2559-1 (DG)	TH Bobbin	EFD-25	PM9823 BK	2	4x2	0.6x0.6	22.5	5	DG	0
505	P-2567 (DG)	TH Bobbin	EF-2511	PET 4410G6	1	6x6	0.64x0.64	19.8	5.0	DG	1
506	P-2569 (DG)	TH Bobbin	EF-25	PM9820	1	5x5	ø0.8	20.0	4.0	DG	0
507	P-2570 (SZ)	TH Bobbin	ER-25.5	PM9820	1	5x5	ø0.8	15.0	5.0	SZ	1
508	P-2576 (DG)	TH Bobbin	EF-25	DAP AM113	1	5x5	0.64x0.64	12.7	5.0	DG	0
509	P-2576-1 (DG)	TH Bobbin	EF-25	WH9100HM-P	1	5x5	0.64x0.64	12.7	5.0	DG	0
510	P-2576-2 (DG)	TH Bobbin	EF-25	PM9630 BK	1	5x5	0.64x0.64	12.7	5	DG	0

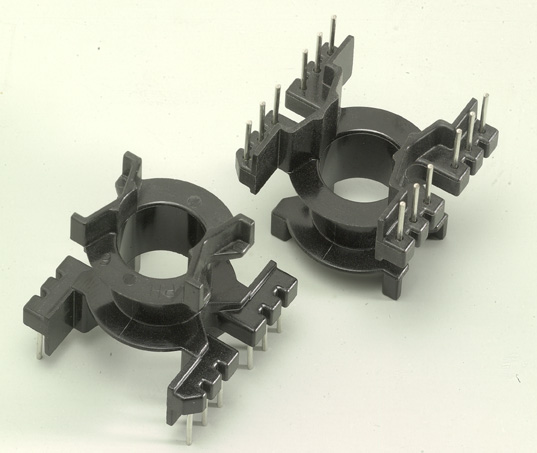

511	P-2601 (DG)	TH Bobbin	PQ-2625	PM9820	1	6x6	ø0.8	25.4	3.81 / 7.62	DG	2
512	P-2601-3 (DG)	TH Bobbin	PQ-2625	PM9630 JT	0	6x6	ø0.8	25.4	7.62 / 3.81	DG	0
513	P-2601-4 (DG)	TH Bobbin	PQ-2625	T375HF BK	1	6x6	ø0.8	25.4	3.81 / 7.62	DG	0
514	P-2601-5 (DG)	TH Bobbin	PQ-2625	PM9820	1	6x6	ø0.8	25.4	3.81 / 7.62	DG	0

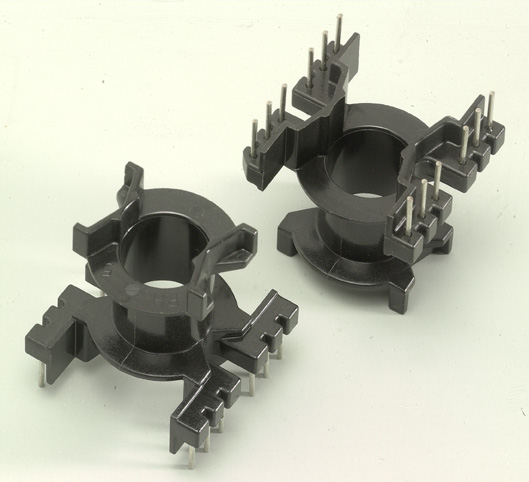

515	P-2602 (DG)	TH Bobbin	PQ-2620	PM9820 / T375J	1	6x6	ø0.8	25.4	3.81 / 7.62	DG	6
516	P-2602-1 (SZ)	TH Bobbin	PQ-26	PM9820	1	6x6	ø0.6	25.4	3.8 / 7.5	SZ	1
517	P-2602-3 (DG)	TH Bobbin	PQ-2620	DAP AM113	1	6x6	ø0.8	25.4	3.81 / 7.62	DG	0
518	P-2602-4 (DG)	TH Bobbin	PQ-2620	WH9100HM-P	1	6x6	ø0.8	25.4	3.81 / 7.62	DG	0
519	P-2603 (DG)	TH Bobbin	PQ-2620	CP-J-8800	1	6x6	ø0.6	25.4	3.81 / 7.62	DG	1
520	P-2802 (SZ)	TH Bobbin	ET-28	PBT 1403G6	4					SZ	4
