Bobbin & Base

Part No.

Pin Size

Grooves

No.	Part No.	Type	Core Type	Meterial	Grooves	Pins	Pin Size	Pin Row Distance	Pin Pitch	origin	ver

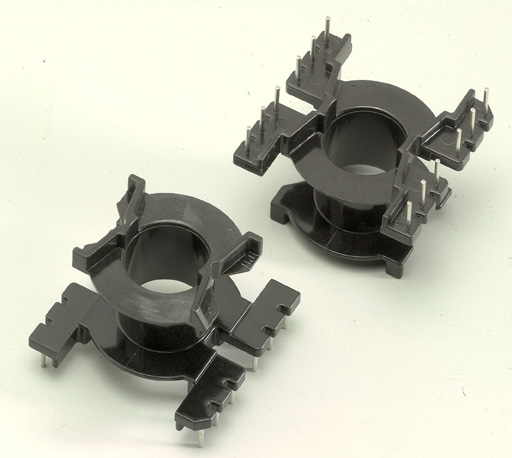

601	P-3202 (SZ)	TH Bobbin	PQ-3225	PM9820 / T375HF	1	6x6	ø0.8	30.5	5.08 / 7.62	SZ	4
602	P-3210 (SZ)	TH Bobbin	PQ-3230	PET FR530	1	2x1	0.6x0.6	28.2	8.5	SZ	2
603	P-3219 (DG)	TH Bobbin	EE-32	PM9630	1	7x7	ø0.8	25.0	5.0	DG	0

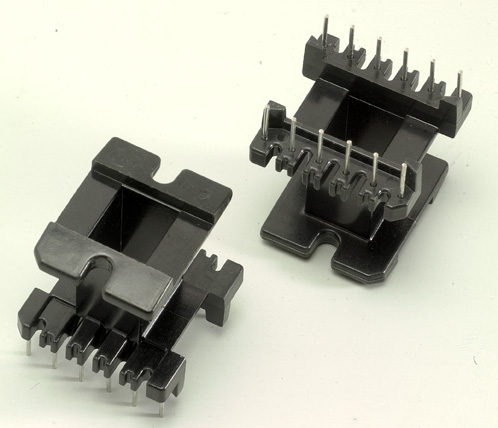

604	P-3302 (DG)	TH Bobbin	EI-33	T375J	1	7x7	ø0.8	22.6	5.0	DG	3
605	P-3302-1 (DG)	TH Bobbin	EI-33	T375J	1	7x7	ø0.8	22.6	5.0	DG	3
606	P-3302-4 (DG)	TH Bobbin	EI-33	T375HF BK	1	7x7	ø0.8	22.5	5	DG	0
607	P-3302-5 (DG)	TH Bobbin	EI-33	T375HF BK	1	7x7	ø0.8	22.6	5.0	DG	0
608	P-3303 (ZZ)	TH Bobbin	EI-33	T375J	1	6x6	ø0.8	22.7	5.0	ZZ	4
609	P-3303-1 (ZZ)	TH Bobbin	EI-33	T375J	1	6x6	ø0.8	22.7	5.0	ZZ	4
610	P-3304 (ZZ)	TH Bobbin	EI-33	T375J	1	6x6	ø0.8	22.7	5.0	ZZ	3
611	P-3305-1 (ZZ)	TH Bobbin	EER-33	T375J / PM9820	1	7x7	ø1.0	25.0	5.0	ZZ	0
612	P-3306 (DG)	TH Bobbin	BP-33	PM9820	1	6x6	ø0.8	22.5	5.0	DG	5
613	P-3309 (DG)	TH Bobbin	POT-3319	PM9820	1	5x5	ø0.8	33.5	5.0	DG	2
614	P-3309-1 (SZ)	TH Bobbin	POT-3319	PM9820	1	5x5	ø0.8	33.5	5.0	SZ	4
615	P-3309-2 (DG)	TH Bobbin	POT-3319	PM9820	1	5x5	ø0.8	33.5	5.0	DG	0
616	P-3309-3 (ZZ)	TH Bobbin	POT-3319	PM9820	1	5x5	ø0.8	33.5	5.0 / 4.6 / 5.4	ZZ	5
617	P-3309-6 (ZZ)	TH Bobbin	POT-3319	PM9820	1	5x5	ø0.8	33.5	5.0	ZZ	4
618	P-3310 (SZ)	TH Bobbin	PJ-3324	CP-J-8800	1	6x9	0.8x0.8	33.5	4.0	SZ	3
619	P-3318 (ZZ)	TH Bobbin	POT-3318	PM9820	1	5x3	ø0.8	33.5	5.0	ZZ	4
620	P-3323 (ZZ)	TH Bobbin	POT-3318	PM9820	1	5x4	ø0.8	33.5	5.0	ZZ	2
