Bobbin & Base

Part No.

Pin Size

Grooves

No.	Part No.	Type	Core Type	Meterial	Grooves	Pins	Pin Size	Pin Row Distance	Pin Pitch	origin	ver

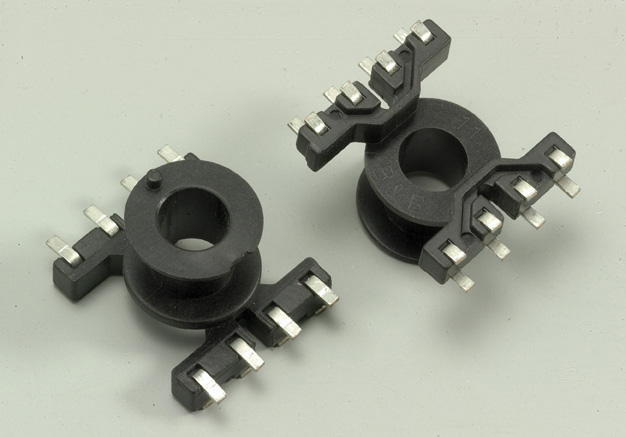

761	S-0506 (DG)	SMD Bobbin	RM-05	PM9630	1	4x4	1.0x0.35	12.0 / 15.2 / 17.8	3.75	DG	3

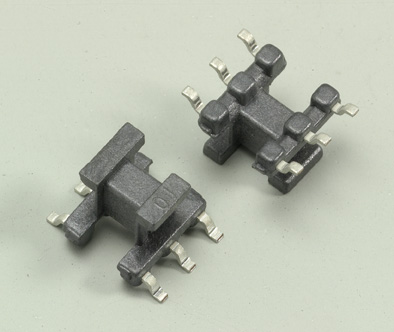

762	S-0507 (DG)	SMD Bobbin	EP-05	PM9630	1	3x3	0.6x0.25	6.6 / 7.7	1.85	DG	10
763	S-0507-2 (DG)	SMD Bobbin	EP-05	PM9630	1	2x3	0.6x0.25	6.6 / 7.7	1.85	DG	0

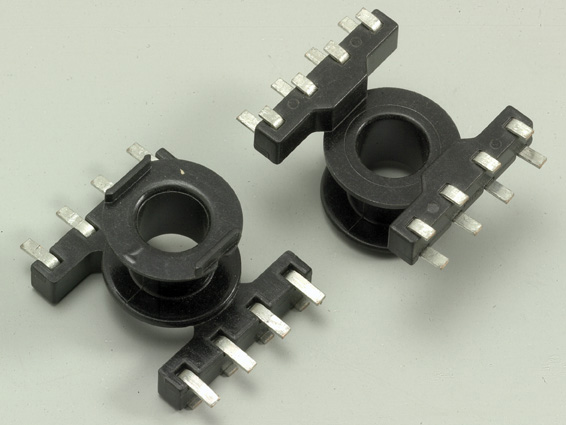

764	S-0508 (DG)	SMD Bobbin	RM-05	PM9630	1	4x4	1.0x0.3	15.5 / 18.1	3.75	DG	3
765	S-0509 (DG)	SMD Bobbin	EE-05	LCP E4008	1	3x3	0.6x0.25	6.6 / 7.7	1.85	DG	2
766	S-0509-1 (DG)	SMD Bobbin	EE-05	LCP E4008	1	3x3	0.6x0.25	6.6 / 7.7	1.85	DG	1
767	S-0509-3 (DG)	SMD Bobbin	EE-05	LCP E4008	1	3x2	0.6x0.25	6.6 / 7.7	1.85 / 3.7	DG	1
768	S-0509-4 (DG)	SMD Bobbin	EE-05	LCP E4008	1	2x2	0.6x0.25	6.6 / 7.7	3.7	DG	1
769	S-0509-5 (DG)	SMD Bobbin	EE-05	LCP E4008	1	3x3	0.6x0.25	6.6 / 7.7	1.85	DG	0
770	S-0510 (DG)	SMD Bobbin	RM-05V	LCP E4008	1	4x4	0.6x0.3	16.6 / 19.0	3.81	DG	1
771	S-0511 (DG)	SMD Bobbin	EP-05	PM9630	2	3x3	0.6x0.25	6.6 / 7.7	1.85	DG	4
772	S-0511-1 (DG)	SMD Bobbin	EP-05	PM9630	2	2x2	0.6x0.25	5.0 / 7.7	3.7	DG	0
773	S-0513 (DG)	SMD Bobbin	EP-05	PM9630	1	4x4	0.6x0.25	6.6 / 8.6	1.9	DG	2
774	S-0513 (SZ)	SMD Bobbin	EP-05	PM9630	1	4x4	0.6x0.25	6.6 / 8.6	1.9	SZ	1
775	S-0514 (SZ)	SMD Bobbin	RM-05	LCP E4008	2	4x4	0.6x0.3	16.0 / 19.0	3.81	SZ	1
776	S-0514-1 (SZ)	SMD Bobbin	RM-05	LCP E4008	1	4x4	0.6x0.3	16.0 / 19.0	3.81	SZ	1
777	S-0515 (SZ)	SMD Bobbin	EE-05	PM9630	1	3x3	0.56x0.25	7.6 / 8.7	1.85	SZ	0
778	S-0516 (DG)	SMD Bobbin	EE-05	LCP E4008	1	3x3	0.5x0.2	6.87 / 7.85	1.8	DG	0
779	S-0601 (DG)	SMD Bobbin	EE-06.3	LCP E4008	1	3x3	0.6x0.25	7.3 / 8.5	2.54	DG	6
780	S-0601-4 (DG)	SMD BOBBIN	EE-6.3	LCP R8240 BK	1	2x2	0.6x0.35	NULL	10	DG	0
