Bobbin & Base

Part No.

Pin Size

Grooves

No.	Part No.	Type	Core Type	Meterial	Grooves	Pins	Pin Size	Pin Row Distance	Pin Pitch	origin	ver
741	PB-044 (DG)	Header	20.3x9.0x4.6	T375J		8x8	ø0.5	7.62	2.54	DG	2
742	PB-045 (SZ)	TH Base	CV-09	PM9820		4x2x4	ø0.5	9.4 / 15.22	4.94 / 4.0 / 1.53	SZ	0
743	PB-046 (DG)	Case/Cover	16.0x9.0x5.0	PM9820		2x4	0.6x0.8	20.0	5.0 / 15.0	DG	2
744	PB-053 (DG)	Case/Cover	PJ-3319	PM9820(BK)		2x2	0.64x0.64	13.46	7.36 / 13.40	DG	4
745	PB-053-1 (DG)	Case/Cover	PJ-3319	DAP WH9100 BK		2x2	0.64x0.64	13.46	7.36	DG	0
746	PB-062 (DG)	TH Base	13.0x8.0x11.0	PM9820		3x3	ø0.8	10.0	2.5	DG	3
747	PB-071 (SZ)	Case/Cover	EER-49	PM9630						SZ	3
748	PB-076 (SZ)	Case/Cover	EER-34	PET FR530						SZ	2
749	PB-078 (SZ)	TH Base	RM-1018	PM9630		4	ø0.8		3.5	SZ	1
750	PB-079 (SZ)	TH Base	RM-08	PM9630		4	ø0.6		3.0	SZ	2
751	PB-086-1 (SZ)	TH Base	T-18.0x10.0x7.0	T375Hf		2x2	0.64x0.64	20.0	22.5	SZ	0

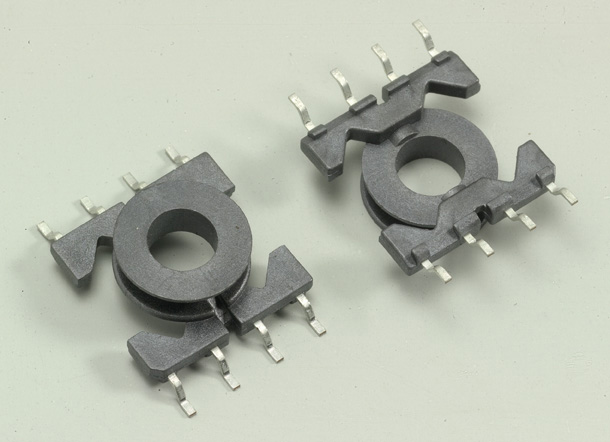

752	S-0401 (DG)	SMD Bobbin	RM-04	PM9630	1	4x4	0.6x0.3	8.8 / 12.2 / 15.2	3.0	DG	2

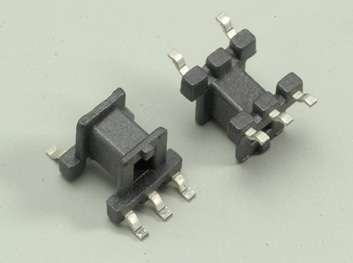

753	S-0501 (DG)	SMD Bobbin	EE-05	LCP E4008	2	3x3	0.6x0.25	6.6 / 7.7	1.85	DG	0

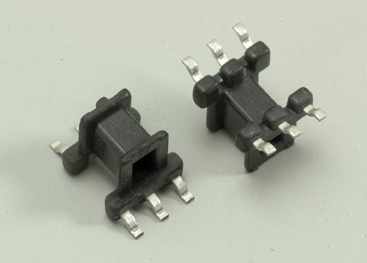

754	S-0501-1 (SZ)	SMD Bobbin	EE-05	PM9630	2	3x3	0.6x0.25	6.6 / 7.7	1.85	SZ	1
755	S-0501-2 (DG)	SMD Bobbin	ED-05	PM9630	2	2x2	0.6x0.25	6.6 / 7.7	3.7	DG	1

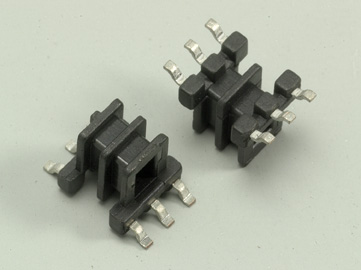

756	S-0502 (DG)	SMD Bobbin	EE-05	LCP E4008	1	3x3	0.6x0.25	6.6 / 7.7	1.85	DG	1
757	S-0502 (SZ)	SMD Bobbin	EE-05	LCP E4008	1	3x3	0.6x0.25	6.6 / 7.7	1.85	SZ	2
758	S-0502-1 (DG)	SMD Bobbin	EE-05	LCP E4008	1	3x3	0.6x0.25	6.6 / 8.6	1.85	DG	0
759	S-0502-2 (DG)	SMD Bobbin	EE-05	LCP E4008	1	3x3	0.6x0.25	6.6 / 7.7	1.85	DG	3
760	S-0502-3 (DG)	SMD Bobbin	EE-05	LCP E4008	1	3x3	0.6x0.25	6.6 / 8.7	1.85	DG	0
