Bobbin & Base

Enter one or more of the options below in search of bobbin & base:

Part No.

Pin Size

Grooves

Descriptions of Pin Shine P/N Chart

No.	Part No.	Type	Core Type	Meterial	Grooves	Pins	Pin Size	Pin Row Distance	Pin Pitch	origin	ver

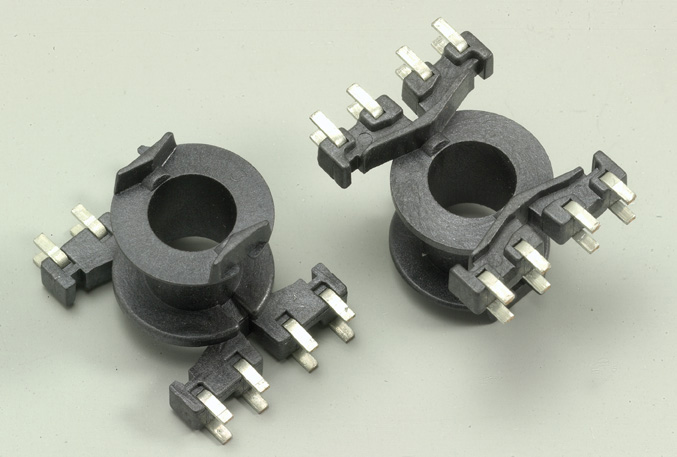

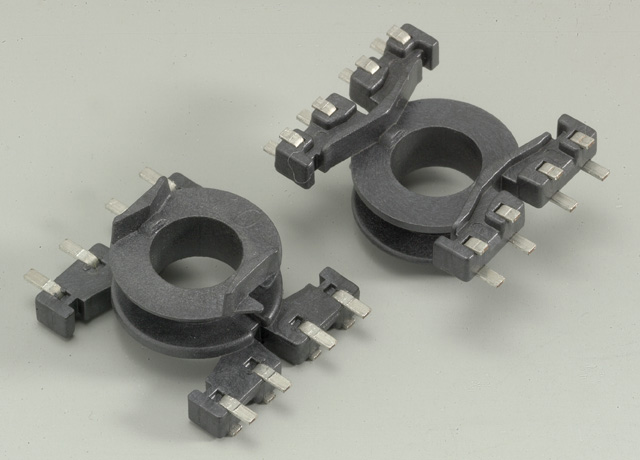

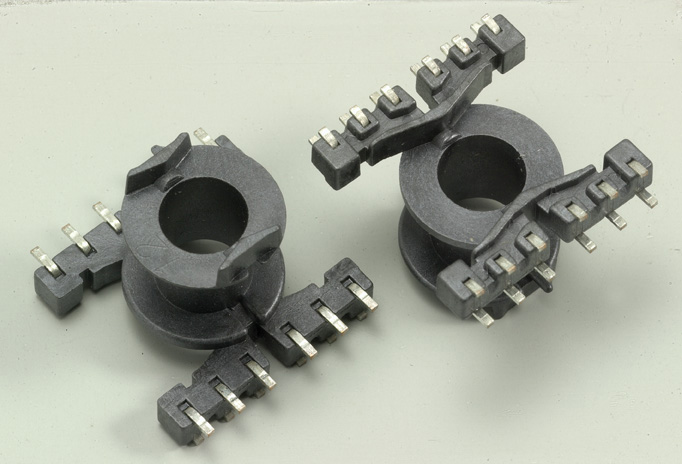

781	S-0603 (DG)	SMD Bobbin	RM-06	LCP E4008	1	4x4	1.0x0.35	14.6 / 18.0 / 21.0	3.75 / 5.0	DG	2
782	S-0603-1 (DG)	SMD Bobbin	RM-06	LCP E4008	1	4x4	1.0x0.35	14.6 / 21.0	3.75 / 5.0	DG	0
783	S-0603-2 (DG)	SMD Bobbin	RM-06	LCP E4008	1	4x4	1.0x0.35	14.6 / 18.0 / 21.0	3.75 / 5.0	DG	0
784	S-0603-3 (DG)	SMD Bobbin	RM-06	LCP E4008	1	4x4	1.0x0.35	14.6 / 18.0 / 21.0	3.75 / 5.0	DG	1
785	S-0603-4 (DG)	SMD Bobbin	RM-06	LCP E4008	1	4x4	0.6x0.3	14.6 / 18.0 / 21.0	3.75 / 5.0	DG	3

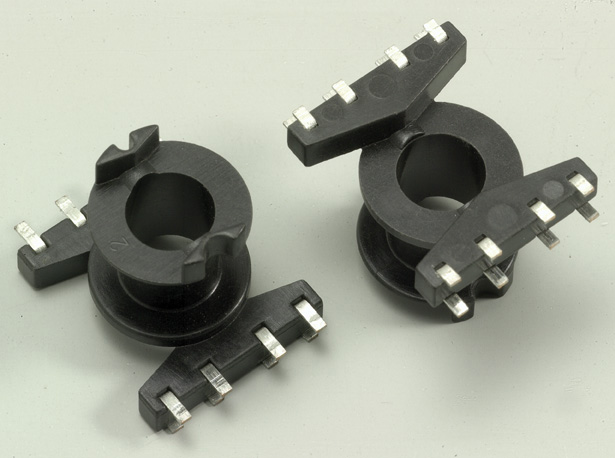

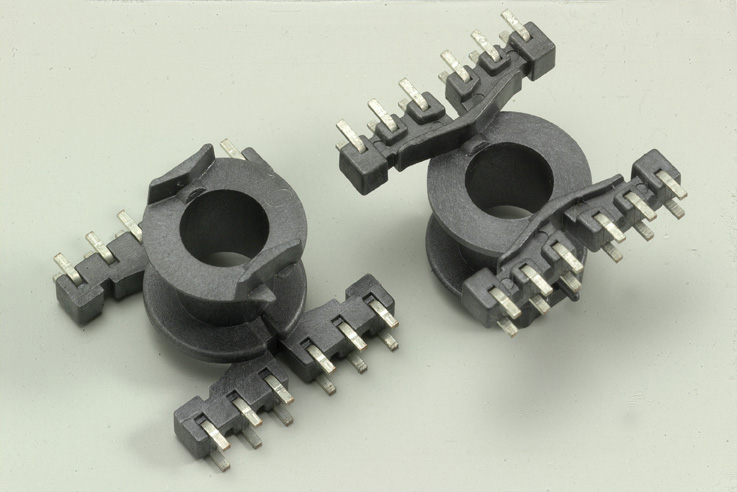

786	S-0604 (DG)	SMD Bobbin	RM-06	LCP E4008	1	6x6	0.7x0.4	14.6 / 18.0 / 20.4	3.0 / 4.0	DG	0
787	S-0604-1 (DG)	SMD Bobbin	RM-06	LCP E4008	1	6x6	0.7x0.4	14.6 / 20.4	3.0 / 4.0	DG	0

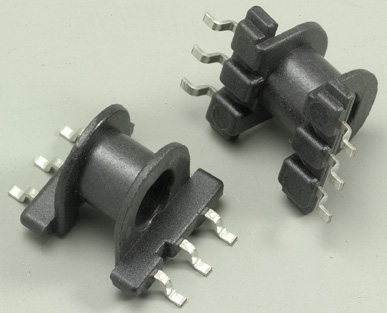

788	S-0605 (DG)	SMD Bobbin	EE-06.3	LCP E4008	2	3x3	0.6x0.25	7.3 / 8.5	2.54	DG	4
789	S-0605-1 (DG)	SMD Bobbin	EE-06.3	LCP E4008	2	3x3	0.6x0.25	7.3 / 8.5	2.54	DG	1

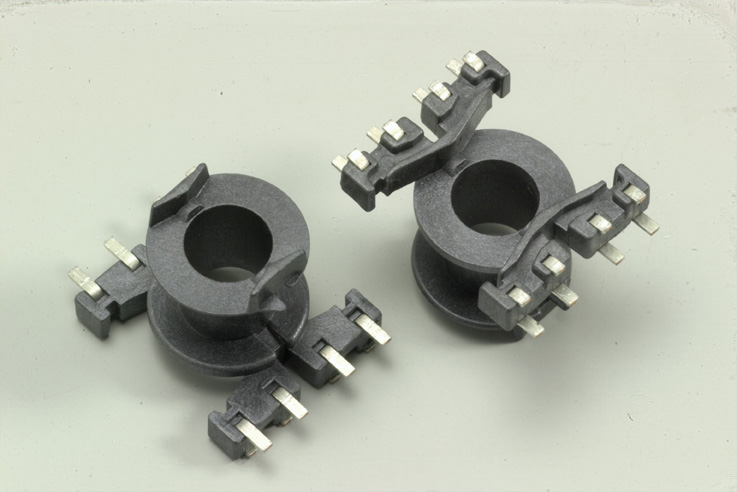

790	S-0607 (DG)	SMD Bobbin	RM-06	PM9630	1	4x4	1.0x0.3	18.5 / 20.5	3.75 / 5.0	DG	3

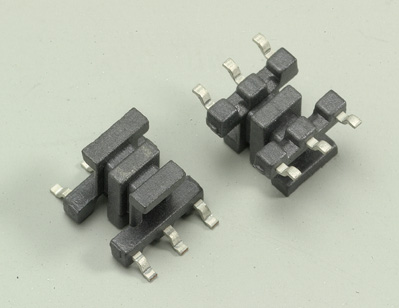

791	S-0608 (DG)	SMD Bobbin	EFD-06.5	LCP E4008	1	3x3	0.6x0.3	8.6 / 9.8	1.5 / 1.8	DG	1
792	S-0701 (DG)	SMD Bobbin	EP-07	LCP E4008	1	3x3	0.6x0.25	10.6 / 12.7	2.54	DG	3
793	S-0701-1 (DG)	SMD Bobbin	EP-07	LCP E4008	1	3x3	0.7x0.25	10.6 / 12.7	2.54	DG	9
794	S-0701-2 (DG)	SMD Bobbin	EP-07	PM9630	1	3x3	0.7x0.25	10.6 / 12.7	2.5	DG	7

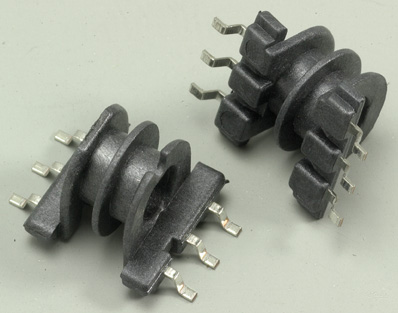

795	S-0702 (DG)	SMD Bobbin	EP-07	LCP E4008	2	3x3	0.6x0.25	10.6 / 12.7	2.54	DG	3
796	S-0702-1 (DG)	SMD Bobbin	EP-07	LCP E4008	2	3x3	0.7x0.25	10.6 / 12.7	2.5	DG	1
797	S-0702-2 (DG)	SMD Bobbin	EP-07	PM9630	2	3x3	0.7x0.25	10.6 / 12.7	2.5	DG	1
798	S-0703 (DG)	SMD Bobbin	EPX-07	PM9630	1	4x4	0.6x0.3	10.52 / 12.4	2	DG	2
799	S-0705 (DG)	SMD Bobbin	EP-07	DAP AM113 / PM9630	1	4x4	0.7x0.25	7.4 / 8.8	2.5	DG	7
800	S-0705-1 (SZ)	SMD Bobbin	EP-07	PM9630	1	4x4	0.7x0.25	7.4 / 8.8	2.5	SZ	0
