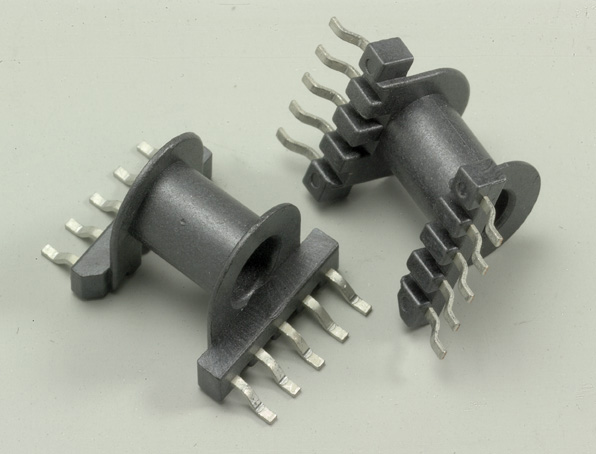

Bobbin & Base

Part No.

Pin Size

Grooves

No.	Part No.	Type	Core Type	Meterial	Grooves	Pins	Pin Size	Pin Row Distance	Pin Pitch	origin	ver
901	S-1209 (DG)	SMD Bobbin	EFD-12	PM9630	1	4x4	0.7x0.4	13.5 / 17.0 / 20.0	3.0	DG	2
902	S-1214 (DG)	SMD Bobbin	EF-12.6	LCP E4008	1	5x5	0.6x0.3	14.6 / 18.2 / 21.8	2.54	DG	4
903	S-1220 (SZ)	SMD Bobbin	EF-12.6	PM9630	1	5x5	0.6x0.4	17.2	2.54	SZ	0
904	S-1301-1 (DG)	SMD Bobbin	EP-13	LCP E4008	1	5x5	0.7x0.3	15.4 / 19.55	2.5	DG	2
905	S-1303-1 (DG)	SMD Bobbin	EPC-13	LCP E4008	1	5x5	0.7x0.4	17.2 / 19.5	2.5	DG	4
906	S-1303-2 (SZ)	SMD Bobbin	EPC-13	LCP E4008	1	5x5	0.7x0.4	19.0	2.5	SZ	0
907	S-1303-5 (SZ)	SMD Bobbin	EPC-13	LCP E4008	1	3x3	0.7x0.4	17.2 / 19.5	2.5	SZ	0
908	S-1306 (DG)	SMD Bobbin	EP-13	LCP E4008	1	5x5	0.7x0.35	15.4 / 17.0	2.5	DG	3
909	S-1306-1 (DG)	SMD Bobbin	EP-13	LCP E4008	1	5x5	0.7x0.35	15.4 / 19.55	2.5	DG	2
910	S-1306-16 (DG)	SMD Bobbin	EP-13	PM9630	1	5x5	0.7x0.35	16.8 / 19.55	2.5	DG	1
911	S-1306-3 (DG)	SMD Bobbin	EP-13	PM9630	1	5x5	0.7x0.35	15.4 / 17.0	2.5	DG	0
912	S-1306-4 (DG)	SMD Bobbin	EP-13	LCP E4008	1	5x5	0.7x0.35	16.8 / 19.55	2.5	DG	1
913	S-1306-9 (SZ)	SMD Bobbin	EP-13	LCP E4008	1	5x5	0.7x0.35	15.4 / 17.0	2.5	SZ	0
914	S-1307 (DG)	SMD Bobbin	EP-13	PM9630	1	5x5	0.7x0.4	15.4 / 17.0	2.5	DG	2
915	S-1308 (DG)	SMD Bobbin	EP-13	PM9630	1	5x5	0.7x0.4	15.4 / 17.0	2.5	DG	5
916	S-1309-2 (DG)	SMD Bobbin	EP-13	LCP E4008	1	5x5	0.7x0.3	15.4 / 17.0	2.5	DG	0
917	S-1311 (DG)	SMD Bobbin	EP-13	PM9630	1	5x5	0.7x0.4	11.8 / 15.45 / 18.45	2.5	DG	4
918	S-1312 (SZ)	SMD Bobbin	EP-13	LCP E4008	2	5x5	0.7x0.35	15.4 / 17.0	2.5	SZ	2
919	S-1312-1 (DG)	SMD Bobbin	EP-13	PM9630	2	5x5	0.7x0.35	15.4 / 17.0	2.5	DG	1
920	S-1312-1 (SZ)	SMD Bobbin	EP-13	PM9630	2	5x5	0.7x0.35	15.4 / 17.0	2.5	SZ	2
