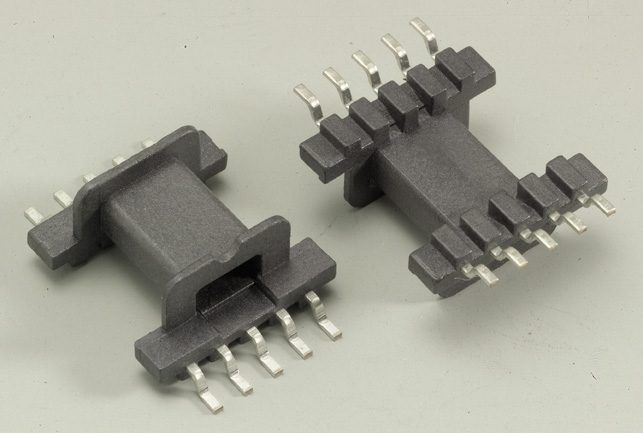

Bobbin & Base

Enter one or more of the options below in search of bobbin & base:

Part No.

Pin Size

Grooves

No.	Part No.	Type	Core Type	Meterial	Grooves	Pins	Pin Size	Pin Row Distance	Pin Pitch	origin	ver
941	S-1501-3 (DG)	SMD Bobbin	EFD-15	PM9630	1	5x5	0.7x0.4	18.2 / 21.35	2.5	DG	2
942	S-1501-4 (DG)	SMD Bobbin	EFD-15	LCP E4008	1	5x5	0.7x0.4	24.0	2.5	DG	0
943	S-1501-5 (DG)	SMD Bobbin	EFD-15	PM9630	1	5x5	0.7x0.4	24.0	2.5	DG	0
944	S-1502 (DG)	SMD Bobbin	EFD-15	PM9630	1	6x6	0.6x0.4	18.1 / 21.35	2.5	DG	5
945	S-1502-1 (DG)	SMD Bobbin	EFD-15	PM9630	1	6x6	0.7x0.4	17.6 / 21.25	2.5	DG	1
946	S-1502-2 (DG)	SMD Bobbin	EFD-15	PM9630	1	6x6	0.7x0.4	22.0	2.5	DG	1
947	S-1502-3 (DG)	SMD Bobbin	EFD-15	LCP E4008	1	6x6	0.7x0.4	17.6 / 21.25	2.5	DG	1
948	S-1503 (DG)	SMD Bobbin	EFD-15	LCP E4008	1	5x5	0.7x0.4	18.2 / 21.35	2.5	DG	2
949	S-1504 (DG)	SMD Bobbin	EFD-15	LCP E4008	4	5x5	0.7x0.4	24.0	2.5	DG	2
950	S-1506-1 (SZ)	SMD Bobbin	UI-15	LCP E4008	8	2x6	0.6x0.4 / 1.0x0.4	22.3 / 24.0	2.5 / 12.5	SZ	4
951	S-1506-1 (ZZ)	SMD Bobbin	UI-15	LCP E4008	8	2x6	0.6x0.4 / 1.0x0.4	22.3 / 24.0	2.5 / 12.5	ZZ	4
952	S-1507 (DG)	SMD Bobbin	FRAME-15	LCP E4008	8	6x4	0.7x0.4	21.9 / 24.0	2.5	DG	3
953	S-1508 (DG)	SMD Bobbin	EFD-15	PM9630	1	4x4	1.0x0.35	16.0 / 19.2 / 22.4	3.75	DG	6
954	S-1508 (SZ)	SMD Bobbin	EFD-15	PM9630	1	4x4	1.0x0.35	16.0 / 19.2 / 21.2	3.75	SZ	1
955	S-1508-1 (DG)	SMD Bobbin	EFD-15	PM9630	1	4x4	1.0x0.35	19.2 / 22.4	3.75	DG	2
956	S-1509-2 (DG)	SMD Bobbin	EFD-15	LCP E4008	4	5x5	0.7x0.4	18.2 / 21.35	2.5	DG	2
957	S-1510-1 (DG)	SMD Bobbin	EFD-15	LCP E4008	2	5x5	0.7x0.4	18.0 / 21.35	2.5	DG	0
958	S-1514-2 (SZ)	SMD Bobbin	EFD-15	LCP E4008	10	7x4	0.5x0.3 / 0.6x0.3	33.3 / 34.9	1.7 / 1.4 / 10.0 / 12.8	SZ	1
959	S-1515-3 (SZ)	SMD Bobbin	EFDL-15	LCP E4008	10	4x7	0.6x0.25 / 0.5x0.25	34.9	1.7 / 1.4 / 10.0	SZ	0
960	S-1519 (DG)	SMD Bobbin	EFD-15	LCP E4008	5	5x2	0.7x0.4	23.1 / 25.0	2.54 / 10.16	DG	1

次へ: 資料総計:1033
