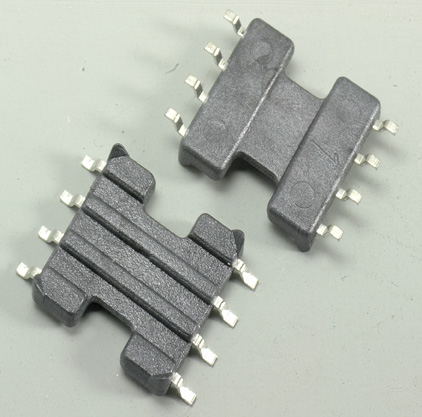

Bobbin & Base

Part No.

Pin Size

Grooves

No.	Part No.	Type	Core Type	Meterial	Grooves	Pins	Pin Size	Pin Row Distance	Pin Pitch	origin	ver

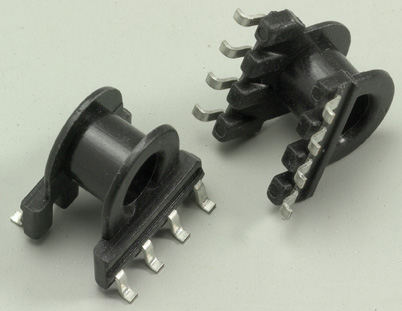

981	S-705-5 (DG)	SMD BOBBIN	EP-07	PM9630JT	1	4x4	0.7x0.25	7.4/8.8	2.5	DG	0
982	SB-001 (DG)	SMD Base	10.0x9.5x1.5	PM9630		4x4	0.6x0.3	10.9 / 12.4	2.5	DG	5
983	SB-001-1 (DG)	SMD Base	10.0x9.5x1.5	LCP E4008		4x4	0.6x0.25	11.0 / 12.4	2.5	DG	2
984	SB-001-1 (SZ)	SMD Base	10.0x9.5x1.5	LCP E4008		4x4	0.6x0.25	11.0 / 12.4	2.5	SZ	0
985	SB-001-6 (DG)	SMD Base	10.0x9.5x1.5	PM9630		4x4	0.6x0.3	10.9 / 12.4	2.5	DG	2
986	SB-001-7 (DG)	SMD Base	10.0x9.5x1.5	PM9630		2x2	0.6x0.3	10.9 / 12.4	7.5	DG	0
987	SB-002 (DG)	SMD Base	10.0x9.5x1.5	LCP E4008		4x4	0.6x0.25	10.9 / 12.4	2.5	DG	2
988	SB-003 (DG)	SMD Base	10.0x9.5x1.5	LCP E4008		4x4	0.6x0.25	10.9 / 12.4	2.5	DG	3
989	SB-004 (DG)	SMD Base	7.0x7.0x0.5	LCP E4008		1x1	0.8x0.15	7.43 / 9.33		DG	3
990	SB-004-3 (DG)	SMD Base	7.0x7.0x0.5	LCP E4008		1x1	0.8x0.15	7.43 / 9.33		DG	3
991	SB-005 (DG)	SMD Base	4.75x4.7x0.6	LCP E4008		1x1	1.52x0.2	6.2 / 8.1		DG	2
992	SB-005-1 (DG)	SMD Base	4.75x4.7x0.6	LCP E4008		1x1	1.52x0.2	6.2 / 7.62		DG	1
993	SB-006 (DG)	SMD Base	3.82x6.3x0.6	LCP E4008		1x1	1.27x0.2	4.6 / 6.3		DG	3
994	SB-006-2 (SZ)	SMD Base	3.82x3.9x0.5	LCP E4008		1x1	1.27x0.15	4.6 / 6.3		SZ	3
995	SB-008 (DG)	SMD Base	6.0x5.4x1.1	PM9630		3x3	0.5x0.2	7.0 / 8.1	2.0	DG	3
996	SB-010 (DG)	SMD Base	12.0x12.0x0.5	LCP E4008		2x2	1.0x0.25	12.0 / 18.0		DG	3
997	SB-010-1 (DG)	SMD Base	12.0x12.0x0.5	LCP E4008		2x2	1.0x0.25	12.02 / 18.0		DG	0
998	SB-010-4 (SZ)	SMD Base	12.0x12.0x0.5	LCP E4008		2x2	1.0x0.25	12.0 / 18.0		SZ	4
999	SB-010-7 (DG)	SMD Base	12.0x12.0x0.5	LCP E4008		2x2	1.0x0.25	12.02 / 18.0		DG	0
1000	SB-011-8 (SZ)	SMD Base	10.6x9.5x0.52	LCP E4008		1x1	0.8x0.2	11.0 / 12.8		SZ	4

次へ: 資料総計:1033
