Bobbin & Base

Part No.

Pin Size

Grooves

No.	Part No.	Type	Core Type	Meterial	Grooves	Pins	Pin Size	Pin Row Distance	Pin Pitch	origin	ver
861	S-0914-3 (SZ)	SMD Bobbin	UI-09.8-C	LCP E4008	8	5x3	0.5x0.3	30.4 / 32.0	1.45 / 6.1 / 1.6	SZ	5
862	S-0914-5 (SZ)	SMD Bobbin	UI-09.8-C	LCP E4008	8	5x3	0.5x0.3	32.1	1.45 / 6.1 / 1.6	SZ	4
863	S-0914-6 (SZ)	SMD Bobbin	UI-09.8-C	LCP E4008	8	5x2	0.5x0.3	32.1	1.45 / 6.1 / 1.6	SZ	4

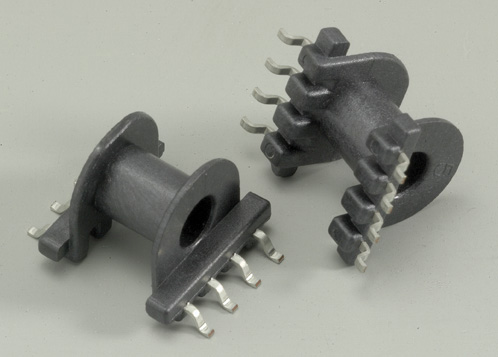

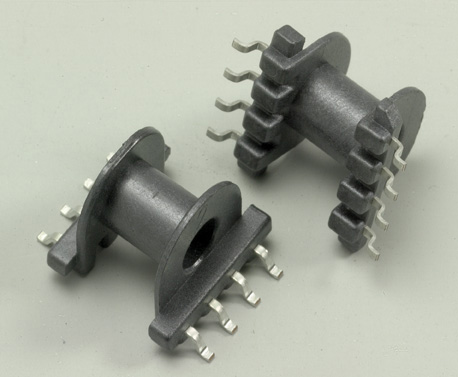

864	S-1001 (DG)	SMD Bobbin	EP-10	LCP E4008	1	4x4	0.6x0.3	12.5 / 14.6	2.5	DG	2
865	S-1001-1 (DG)	SMD Bobbin	EP-10	LCP E4008	1	4x4	0.6x0.3	12.5 / 14.6	2.5	DG	0
866	S-1001-1 (SZ)	SMD Bobbin	EP-10	LCP E4008	1	4x4	0.6x0.3	12.5 / 14.6	2.5	SZ	1
867	S-1001-2 (DG)	SMD Bobbin	EP-10	PM9630	1	4x4	0.6x0.3	12.5 / 14.6	2.5	DG	6

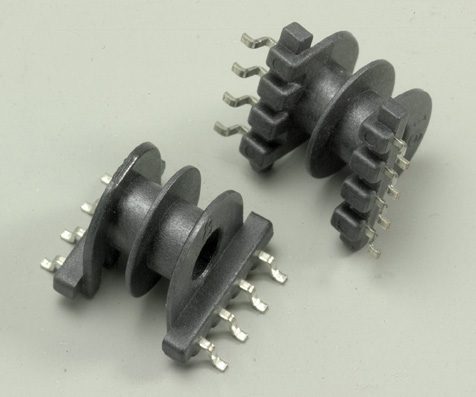

868	S-1002 (DG)	SMD Bobbin	EP-10	LCP E4008	2	4x4	0.6x0.3	12.5 / 14.6	2.5	DG	0
869	S-1003 (DG)	SMD Bobbin	EPC-10	PM9630	1	4x4	0.5x0.3	10.2 / 11.5	2.0	DG	1

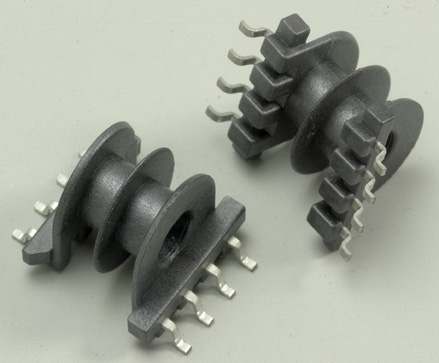

870	S-1004-1 (DG)	SMD Bobbin	EP-10	PM9630	2	4x4	0.6x0.3	12.5 / 14.6	2.5	DG	0
871	S-1004-1 (SZ)	SMD Bobbin	EP-10	PM9630	2	4x4	0.6x0.3	12.5 / 14.6	2.5	SZ	1
872	S-1005 (DG)	SMD Bobbin	EP-10	PM9630(BK)	1	4x4	0.7x0.4	9.6 / 13.2 / 16.6	2.5	DG	0

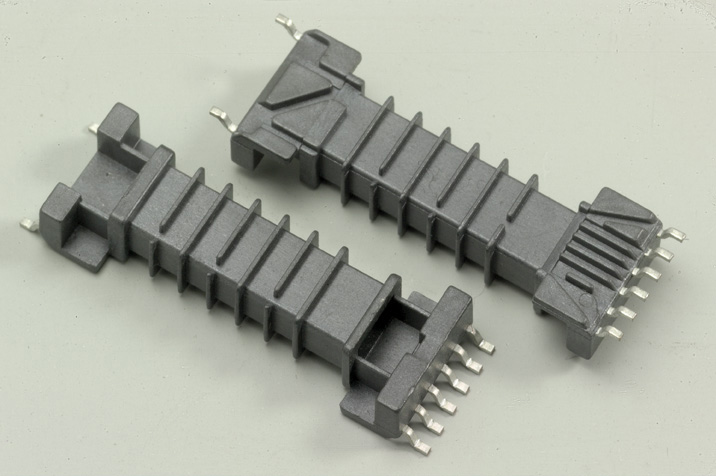

873	S-1007 (DG)	SMD Bobbin	FRAME-10	LCP E4008	7	6x2	0.6x0.35	30.0 / 31.6	1.7 / 8.5	DG	1

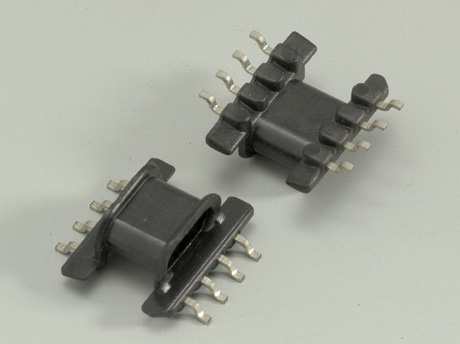

874	S-1008 (DG)	SMD Bobbin	EFD-10	PM9630	1	4x4	0.8x0.3	12.0 / 15.6 / 18.6	3.0	DG	2
875	S-1011-8 (SZ)	SMD Bobbin	LH-10	LCP E4008	10	5x2	0.5x0.3	37.6	1.8 / 6.0	SZ	2
876	S-1018 (SZ)	SMD Bobbin	EE-10.2	PM9630	1	4x4	0.7x0.4	13.7 / 16.4	2.5	SZ	2

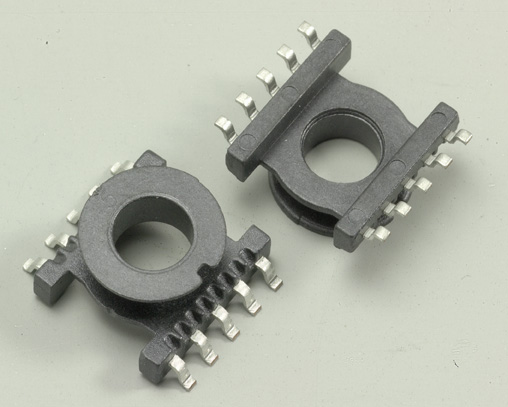

877	S-1100 (DG)	SMD Bobbin	ER-1105	LCP E4008	1	5x5	0.7x0.25	11.0 / 12.2	2.0	DG	0
878	S-1101 (SZ)	SMD Bobbin	ER-1105	LCP E4008	1	5x5	0.7x0.25	11.0 / 12.2	2.0	SZ	4
879	S-1101-1 (DG)	SMD Bobbin	ER-1105	PM9630	1	5x5	0.7x0.25	11.0 / 12.2	2.0	DG	4
880	S-1101-3 (DG)	SMD Bobbin	ER-1105	PM9630	1	5x5	0.7x0.25	11.0 / 12.2	2.5	DG	0

次へ: 資料総計:1033
