Bobbin & Base

Part No.

Pin Size

Grooves

No.	Part No.	Type	Core Type	Meterial	Grooves	Pins	Pin Size	Pin Row Distance	Pin Pitch	origin	ver

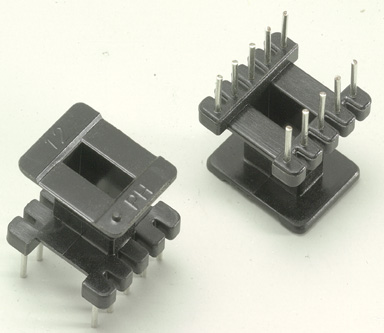

201	P-1302-2 (ZZ)	TH Bobbin	EE-13	PM9820	1	5x5	ø0.6	8.5	2.5	ZZ	3
202	P-1302-5 (SZ)	TH Bobbin	EE-13	PM9820	2	5x5	ø0.6	8.5	2.5	SZ	0
203	P-1303 (DG)	TH Bobbin	EP-13	PM9820	1	5x5	ø0.6	10.0	2.5	DG	5
204	P-1303-1 (DG)	TH Bobbin	EP-13	PM9820	1	5x5	0.5x0.5	10.0	2.5	DG	5
205	P-1303-2 (DG)	TH Bobbin	EP-13	PM9820	2	5x5	ø0.6	10.0	2.5	DG	9
206	P-1303-4 (DG)	TH Bobbin	EP-13	PM9820	1	5x5	ø0.6	10.16	2.54	DG	1
207	P-1304 (DG)	TH Bobbin	EP-13	PM9630	1	5x5	ø0.6	10.0	2.5	DG	2
208	P-1304-1 (DG)	TH Bobbin	EP-13	PM9820	1	5x5	0.5x0.5	10.0	2.5	DG	2
209	P-1304-6 (DG)	TH Bobbin	EP-13	PM9630	1	5x5	0.5x0.5	10.0	2.5	DG	0
210	P-1307 (DG)	TH Bobbin	EP-13	PM9630	1	5x5	0.5x0.5	10.0	2.5	DG	4
211	P-1308 (DG)	TH Bobbin	EP-13	PM9630	2	5x5	0.5x0.5	10.0	2.5	DG	3
212	P-1310 (SZ)	TH Bobbin	EPC-13	LCP E4008	1	5x5	0.7x0.4	16.0	2.5	SZ	0
213	P-1311 (SZ)	TH Bobbin	EPC-13	LCP E4008	4	5x5	0.7x0.4	16.0	2.5	SZ	1
214	P-1314 (DG)	TH Bobbin	EP-13	PM9630	2	5x5	0.5x0.5	10.0	2.54	DG	1
215	P-1318 (SZ)	TH Bobbin	EE-13	PM9820 / PM9630	1	5x5	ø0.6	8.5	2.5	SZ	2

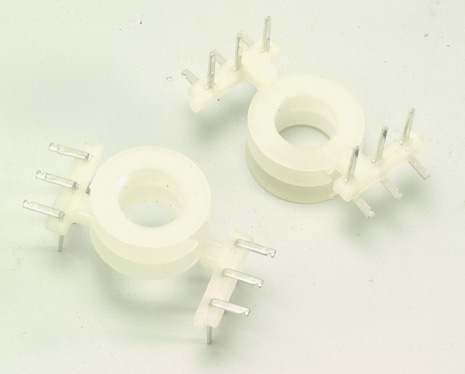

216	P-1406 (DG)	TH Bobbin	POT-1408	PA66 70G33L	2	3x3	0.8x0.3	16.2	3.6	DG	4

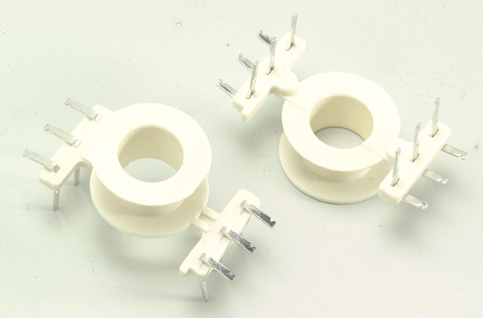

217	P-1407 (DG)	TH Bobbin	POT-1408	PA66 FR50	1	3x3	0.8x0.3	16.3	3.55	DG	1

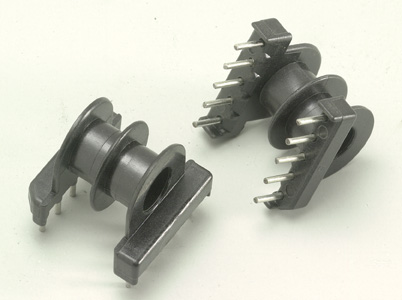

218	P-1408 (DG)	TH Bobbin	EER-1408	PA46 TE250F6	1	5x5	1.1x0.4	14.0	2.54	DG	3
219	P-1409 (DG)	TH Bobbin	RM-14	PET FR530	1	6x6	0.8x0.8	35.56	5.08 / 7.62	DG	5
220	P-1409-1 (SZ)	TH Bobbin	RM-14	PM9630	1	4x4	0.8x0.8	35.56	5.08 / 7.62	SZ	6
