Bobbin & Base

Part No.

Pin Size

Grooves

No.	Part No.	Type	Core Type	Meterial	Grooves	Pins	Pin Size	Pin Row Distance	Pin Pitch	origin	ver
221	P-1409-2 (SZ)	TH Bobbin	RM-14	PET FR530	1	6x6	0.8x0.8	35.56	5.08 / 7.62	SZ	0

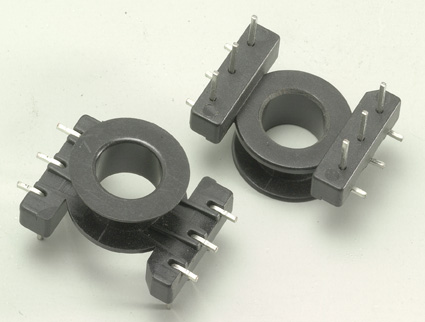

222	P-1411 (DG)	TH Bobbin	POT-1408	PM9630	1	3x3	0.5x0.5	14.0	3.81	DG	1

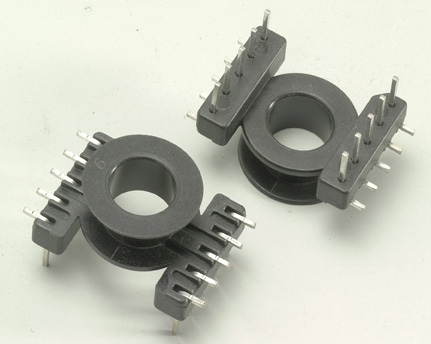

223	P-1412 (DG)	TH Bobbin	POT-1408	PM9630	1	5x5	0.5x0.5	14.0	2.54	DG	2

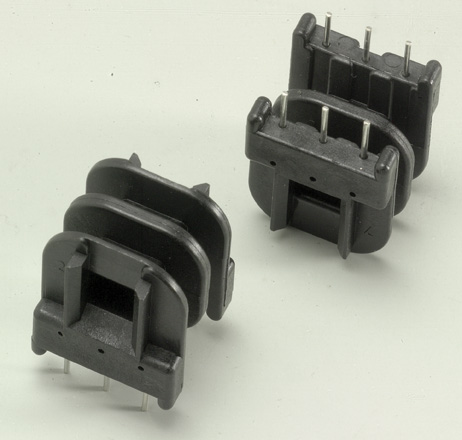

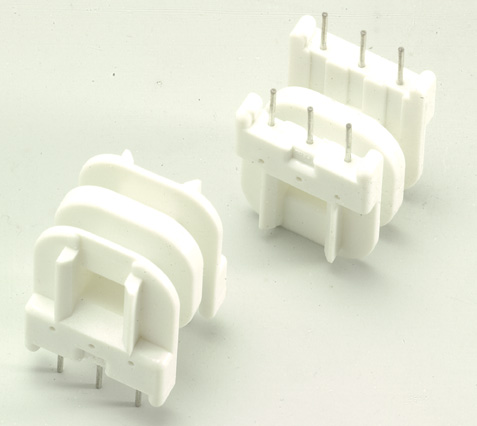

224	P-1501 (DG)	TH Bobbin	UU-15.7V	PBT 4130	2	3x3	ø0.7	13.0	5.0	DG	1
225	P-1502 (DG)	TH Bobbin	UU-15.7V	PBT 4130	2	3x3	ø0.7	13.0	5.0	DG	2
226	P-1503 (SZ)	TH Bobbin	UU-15.7V	PBT 1403G6	1	2x2	ø1.0	15.0	12.7	SZ	1
227	P-1503-1 (SZ)	TH Bobbin	UU-15.7V	PBT 1403G6	2	2x2	ø1.0	15.0	12.7	SZ	1

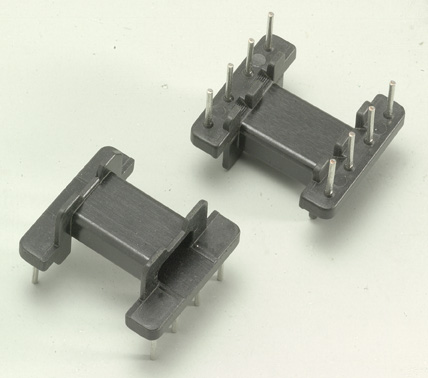

228	P-1505 (DG)	TH Bobbin	EFD-15	PM9820 / PM9630	1	4x4	ø0.6	13.75	3.75	DG	7
229	P-1505-1 (DG)	TH Bobbin	EFD-15	PM9630	1	4x4	0.5x0.5	13.75	3.75	DG	3

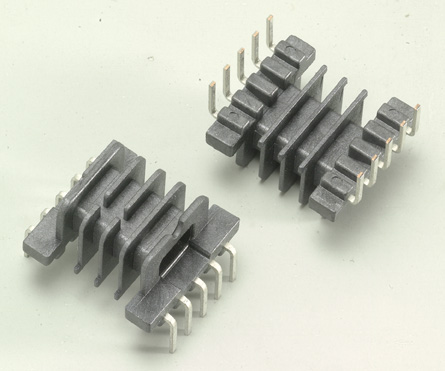

230	P-1506 (DG)	TH Bobbin	EFD-15	LCP E4008	1	5x5	0.7x0.4	17.0	2.5	DG	2
231	P-1506-3 (DG)	TH Bobbin	EFD-15	LCP E4008	1	4x2	0.7x0.4	17.0	2.5 / 5.0 / 7.5	DG	0
232	P-1507 (DG)	TH Bobbin	EFD-15	LCP E4008	4	5x5	0.7x0.4	17.0	2.5	DG	1
233	P-1507-1 (DG)	TH Bobbin	EFD-15	LCP E4008	4	5x2	0.7x0.4	17.0	2.5 / 10.0	DG	1
234	P-1601 (DG)	TH Bobbin	EF-16	PET FR530	1	3x3	0.64x0.64	7.5	3.75	DG	2
235	P-1601 (ZZ)	TH Bobbin	EF-16	PET FR530	1	3x3	0.64x0.64	7.5	3.75	ZZ	2
236	P-1601-1 (DG)	TH Bobbin	EF-16	PET FR530	2	3x3	0.64x0.64	7.5	3.75	DG	1
237	P-1601-2 (DG)	TH Bobbin	EF-16	PET FR530	3	3x3	0.64x0.64	7.5	3.75	DG	5
238	P-1601-3 (SZ)	TH Bobbin	EF-16	PET FR530	1	3x3	0.64x0.64	7.5	3.75	SZ	1
239	P-1601-4 (SZ)	TH Bobbin	EF-16	PET FR530	2	3x3	0.64x0.64	7.5	3.75	SZ	0
240	P-1604 (DG)	TH Bobbin	EEL-16	T375J	1	4x6	ø0.6	12.1	3.5 / 2.7	DG	3

頁次：資料總數：1037
