Bobbin & Base

Part No.

Pin Size

Grooves

No.	Part No.	Type	Core Type	Meterial	Grooves	Pins	Pin Size	Pin Row Distance	Pin Pitch	origin	ver
301	P-1703-6 (DG)	TH Bobbin	EP-17	PM9820 JR	1	4x4	ø0.6	15.0	5.0	DG	0
302	P-1705 (ZZ)	TH Bobbin	EPC-17	PM9820	1	4x6	0.5x0.5	15.0	3.75 / 2.5	ZZ	2
303	P-1706 (DG)	TH Bobbin	EP-17	PM9630	1	4x4	ø0.6	15.24	5.08	DG	1
304	P-1707-1 (SZ)	TH Bobbin	EP-17	PM9630	2	4x4	ø0.6	15.0	5.0	SZ	4
305	P-1707-3 (SZ)	TH Bobbin	EP-17	PM9630	2	4x4	0.6x0.6	15.0	5.0	SZ	6
306	P-1712 (SZ)	TH Bobbin	EE-17	PM9820	1	5x5	ø0.6	12.0	3.3	SZ	0

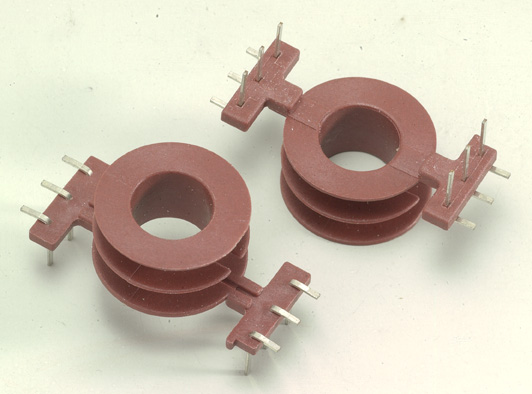

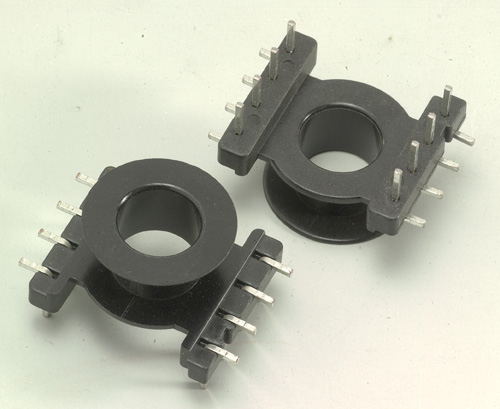

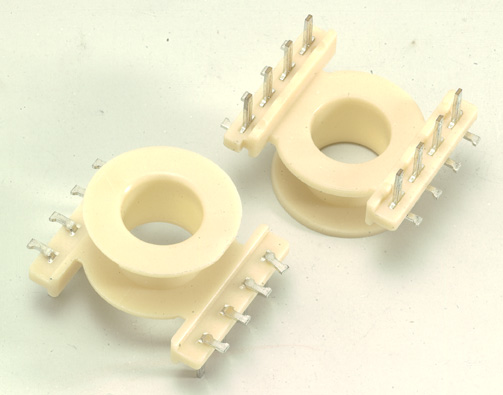

307	P-1801 (DG)	TH Bobbin	POT-1811	PA66 A3X2G7	2	3x3	0.6x0.3	22.4	3.5	DG	2
308	P-1801-1 (DG)	TH Bobbin	POT-1811	PA66 FR50	1	3x3	0.6x0.3	22.4	3.5	DG	1
309	P-1802 (DG)	TH Bobbin	POT-1811	PET FR530	1	4x4	1.1x0.4	16.5	3.8	DG	3
310	P-1804-1 (DG)	TH Bobbin	POT-1811	PM9630	1	4x4	0.64x0.64	16.56	3.81	DG	1
311	P-1806 (SZ)	TH Bobbin	POT-1811	LCP E4008	1					SZ	0

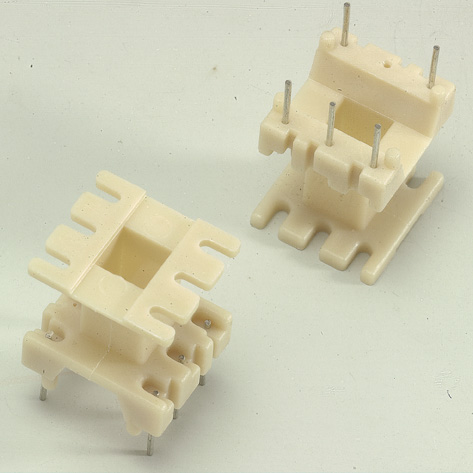

312	P-1902 (ZZ)	TH Bobbin	EI-19	PBT 4130	1	3x3	ø0.7	11.0	4.7	ZZ	1

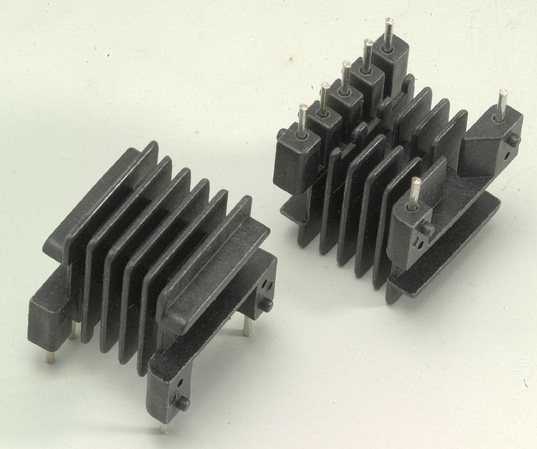

313	P-1903 (DG)	TH Bobbin	EE-19H	PET FR530	5	5x2	ø0.8	14.0	3.5 / 14.0	DG	1

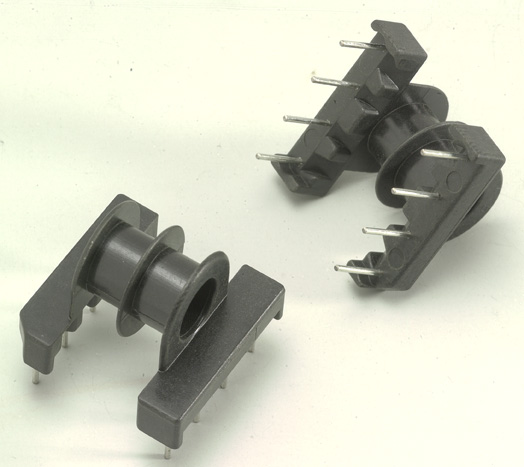

314	P-1904 (DG)	TH Bobbin	EE-19	PBT 4130	1	3x3	ø0.7	11.5	4.75	DG	2
315	P-1904-1 (DG)	TH Bobbin	EE-19	PET FR530	1	3x3	ø0.7	11.5	4.75	DG	2
316	P-1904-1 (SZ)	TH Bobbin	EE-19	PET FR530	1	3x3	ø0.7	11.5	4.75	SZ	2
317	P-1904-4 (SZ)	TH Bobbin	EE-19	PET FR530	1	3x3	ø0.6	11.5	4.75	SZ	1

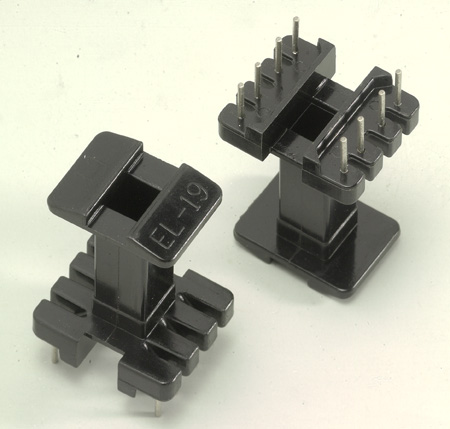

318	P-1905 (DG)	TH Bobbin	EEL-19	T375J	1	4x4	ø0.8	15.0	3.8 / 4.8	DG	3
319	P-1905-3 (DG)	TH Bobbin	EEL-19	T375HF	1	4x4	ø0.8	15.0	3.8 / 4.8	DG	0
320	P-1906 (DG)	TH Bobbin	EEL-19	T375J	1	5x5	ø0.8	15.0	3.8 / 4.8	DG	2
